Nova

Configure

Use the exact order code from the model table. [CCT]: 27 = 2700K, 30 = 3000K, 40 = 4000K, 60 = 6000K. TW, RGB and RGBW options are listed only where available.

Complete the system

01

Model and light option

Use the exact order code from the model table. [CCT]: 27 = 2700K, 30 = 3000K, 40 = 4000K, 60 = 6000K. TW, RGB and RGBW options are listed only where available.

02

Power and control

All listed light models use a remote 24V DC power supply. Specify run length and the required control: non-dimmable, phase, 0-10V or DALI for single white; a compatible controller for TW, RGB or RGBW. TW supports DALI (DT8).

03

Mounting and cable entry

Select accessories from the matching family pages. CE cable-entry options vary by model. Confirm front, side or bottom entry where offered. Order the listed profile length and clip quantity for the installation.

04

Dimensions and installation

Bend limits are diameters unless labelled otherwise. Cutting intervals and maximum runs vary with the light option; confirm the selected configuration before cutting. Marine 1220 aluminium profile is not for swimming pools.

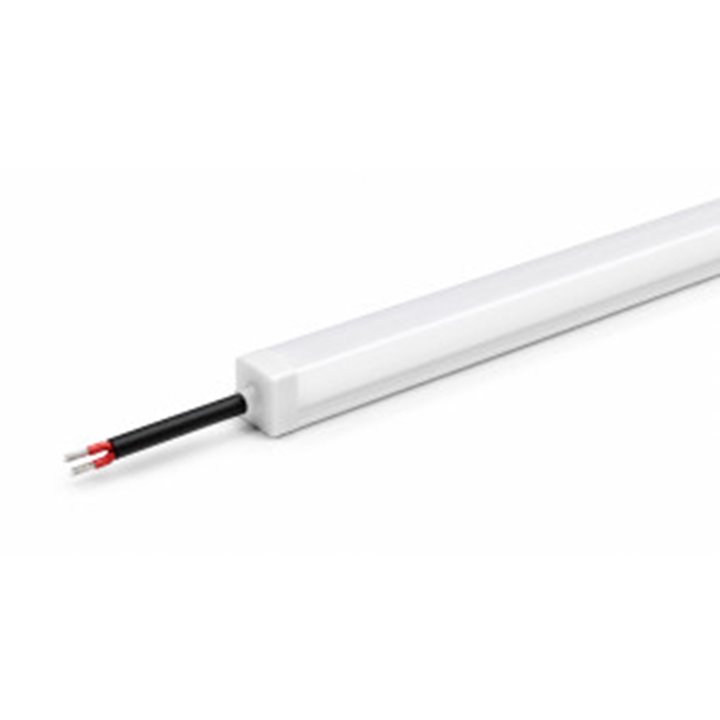

1010CE Silicone End Cap with 30cm Cable NOV1010-CE Cable entry: Front / Side / Bottom (select one)IP67

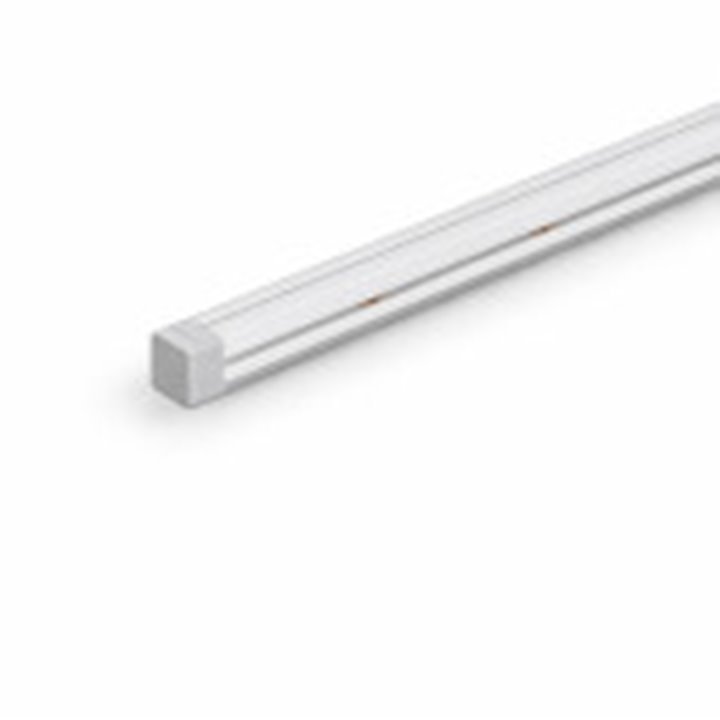

1010EC Silicone Closed End Cap NOV1010-EC IP67

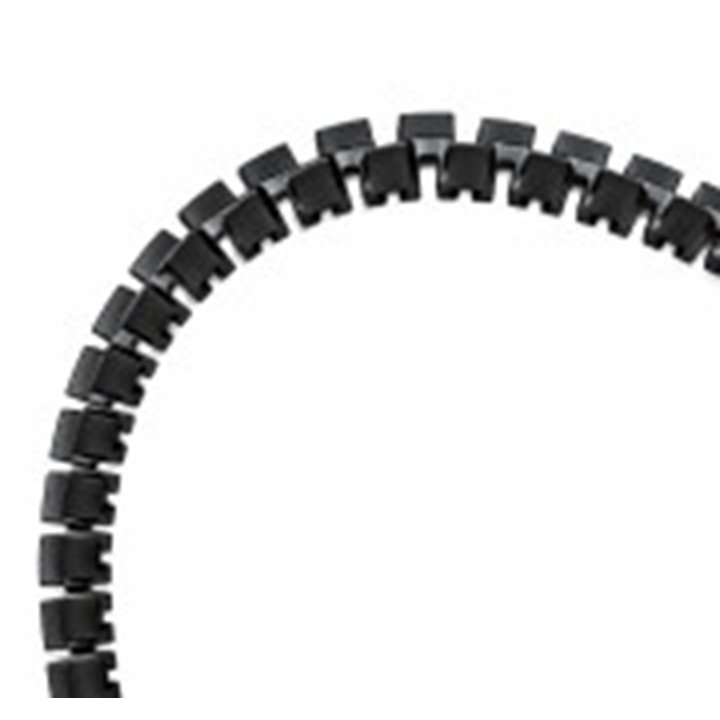

1010CP Curved Profile NOV1010-CP Dimension: W11.2 x H10.3 mmLength: 1 mMaterial: Stainless steel

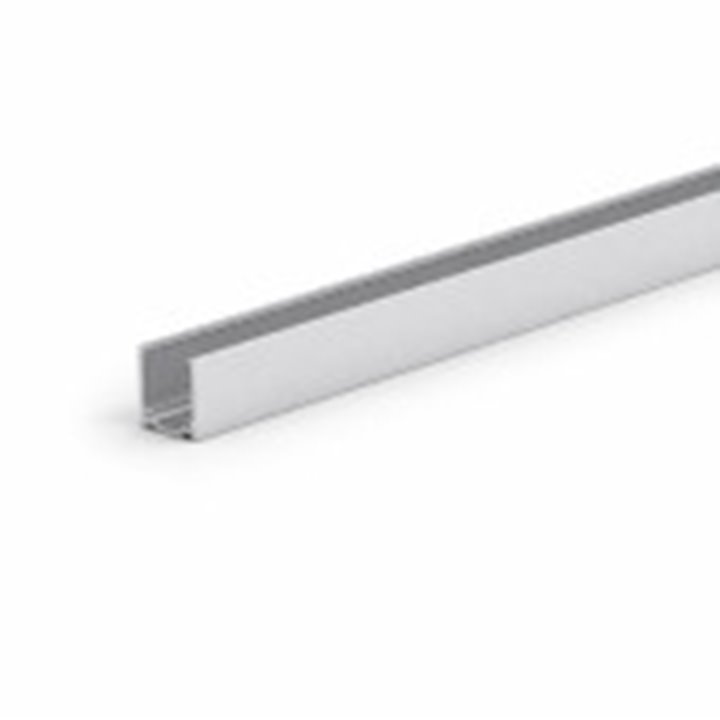

1010AP Aluminium Profile NOV1010-AP Dimension: W12.4 x H13 mmLength: 1 mMaterial: Aluminium

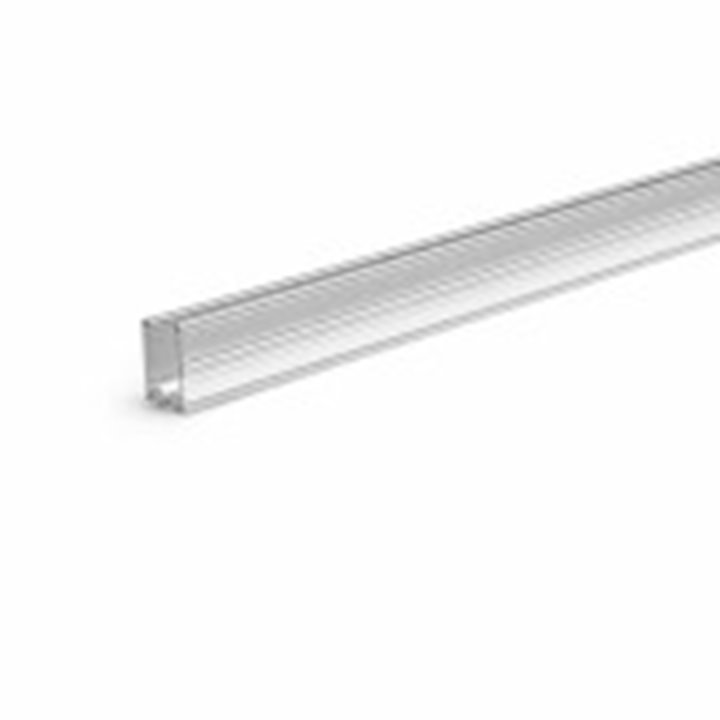

1010PP PC Profile NOV1010-PP Dimension: W12 x H14.3 mmLength: 1 mMaterial: Polycarbonate

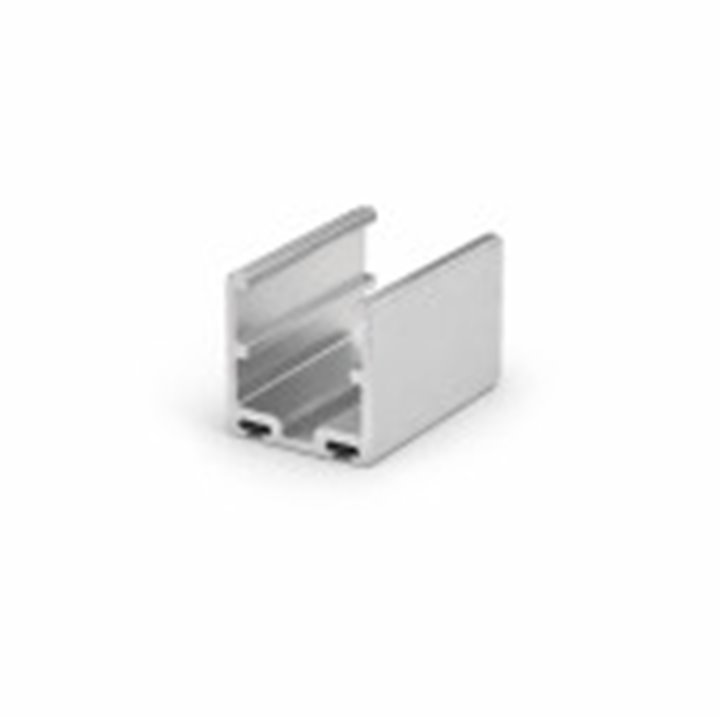

1010AMC Aluminium Mounting Clips NOV1010-AMC Dimension: W12.4 x H13 mmAccessories: 1 screwMaterial: Aluminium

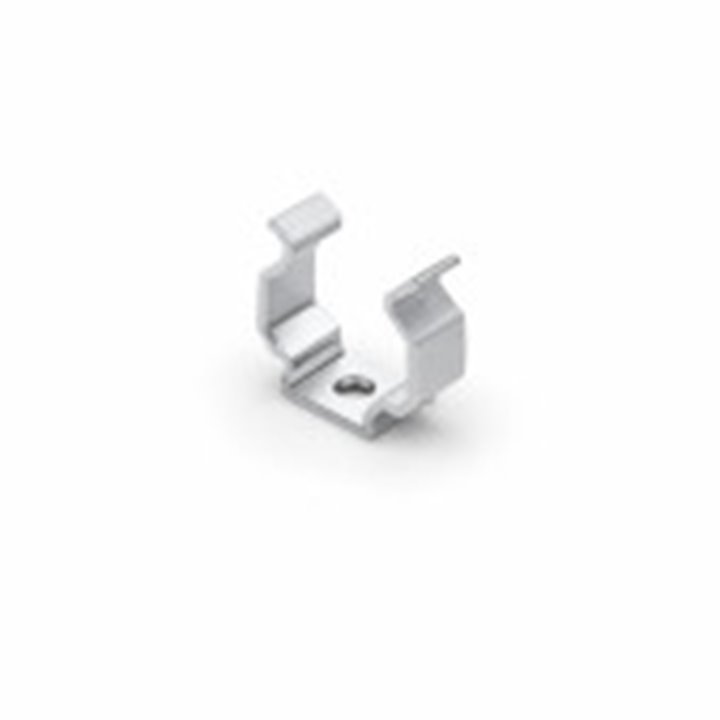

1010SMC Stainless Steel Mounting Clips NOV1010-SMC Dimension: W11.6 x H7.6 mmAccessories: 1 screwMaterial: Stainless steel
