Configure

Build your Magna order code.

Pick a model, then set the light. Only the options that model is made with are shown, so every code you build is a real one.

1 · Track system 5 track systems

Versatile straight-track lighting. DC48V.

2 · Model 22 M20 luminaires · 7 types

3 · Light

Colour

Beam

Body

Dimming

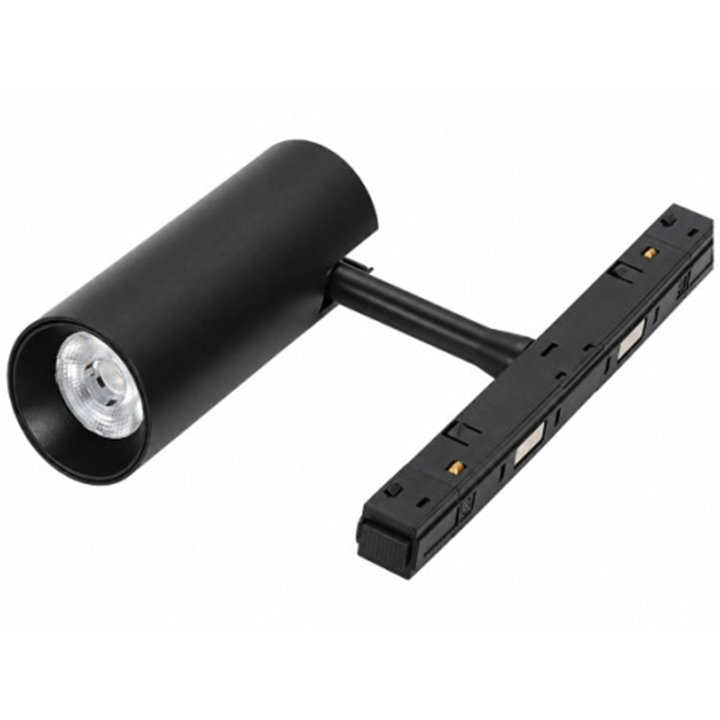

Magna M20 TK07

Order code Magnetic track spot light

MG20TK07-3024-WH-DA

Use the beam angle shown on the model page as the beam code. Control availability varies by system: M20 and M35 offer ND / D0 / DA; M20 Curve and M11 offer ND / DA; M5 offers ND.

Colour temperature3000K

Beam angle24°

Body finishWhite

DimmingDALI

Wattage7 W

Lumen output630 lm

CRI90

Ingress protectionIP20

DimensionsØ45 x L90 mm

MaterialAluminium

InstallationM20 (20mm)

Power supplyTrack-fed (DC48V)

Send this spec →

Complete the system

Tracks & accessories

Select compatible tracks, connectors and power supplies for the chosen family.

Select the system

M20, M20 Curve, M35 and M11 use DC48V. M5 uses DC24V. Match all components to the specified family.

Define the track layout

Select the mounting profile and required lengths or ring diameter. Add the matching corners, joints, end caps and suspension components.

Select the luminaires

Choose each model, wattage, colour temperature, beam angle, body finish and available control option.

Complete power and control

Select compatible power feeds, signal connectors and drivers. Size the power supply for the complete connected load and the installation design.

21 parts for the M20 system · DC48V

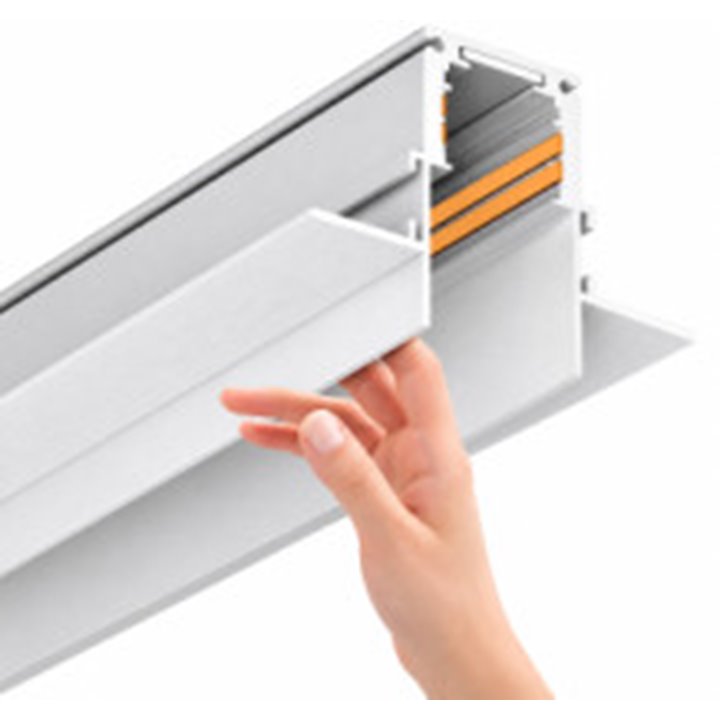

R1 Magnetic Track Rail - Embedded (Concealed) MG20R1-[LEN]-[FIN] Length 1m / 2m / 3m (custom cut available)Finish White / Black

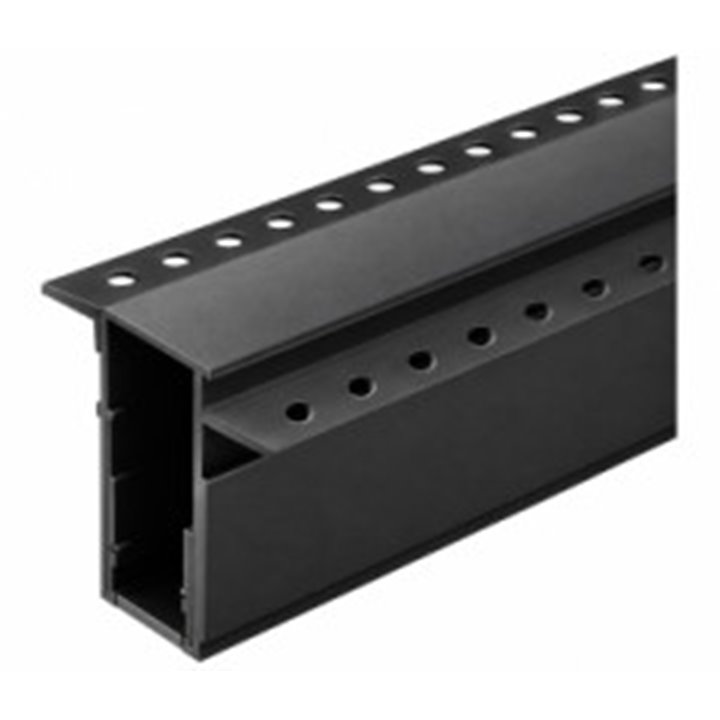

R2 Magnetic Track Rail - Trimless (Plaster-in) MG20R2-[LEN]-[FIN] Length 1m / 2m / 3m (custom cut available)Finish White / Black

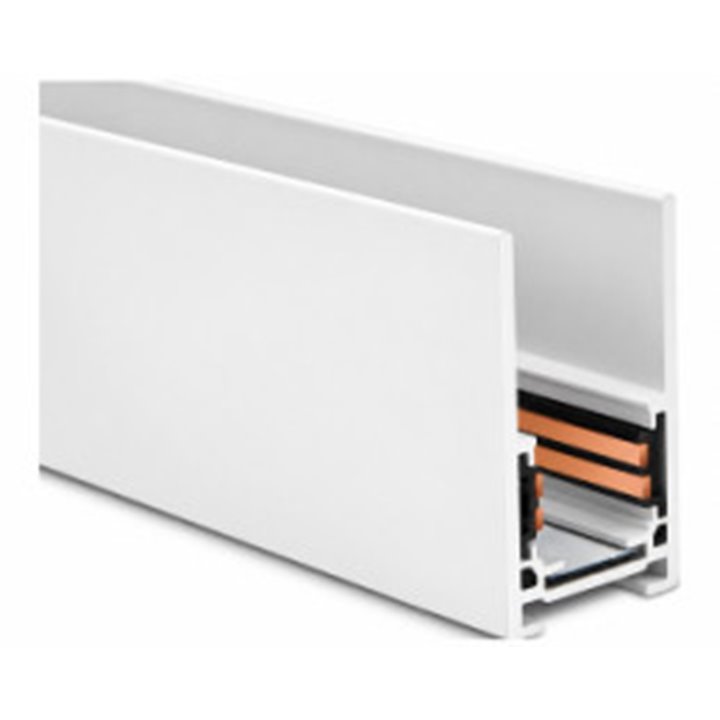

R3 Magnetic Track Rail - Surface / Suspended MG20R3-[LEN]-[FIN] Length 1m / 2m / 3m (custom cut available)Finish White / Black

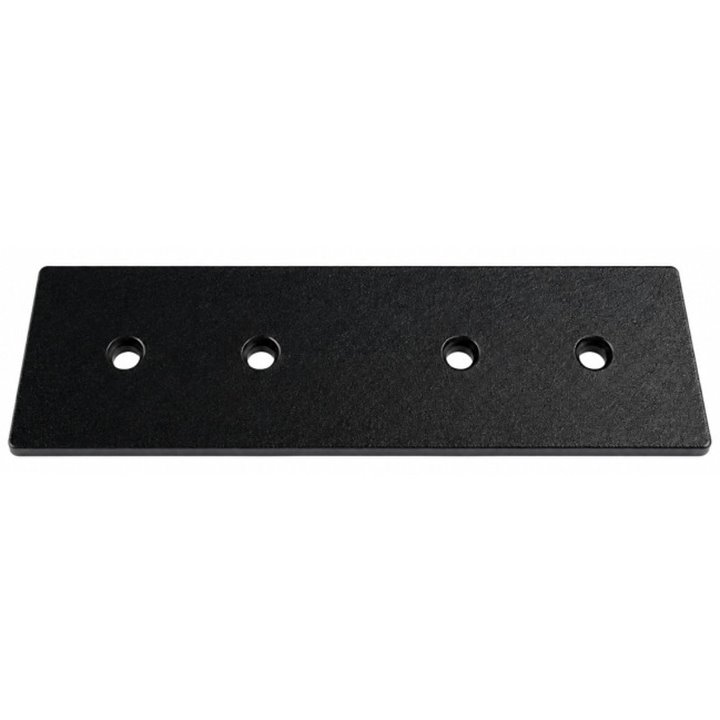

R5 Straight Connecting Piece (joins two rails) MG20R5-[FIN] Finish White / Black

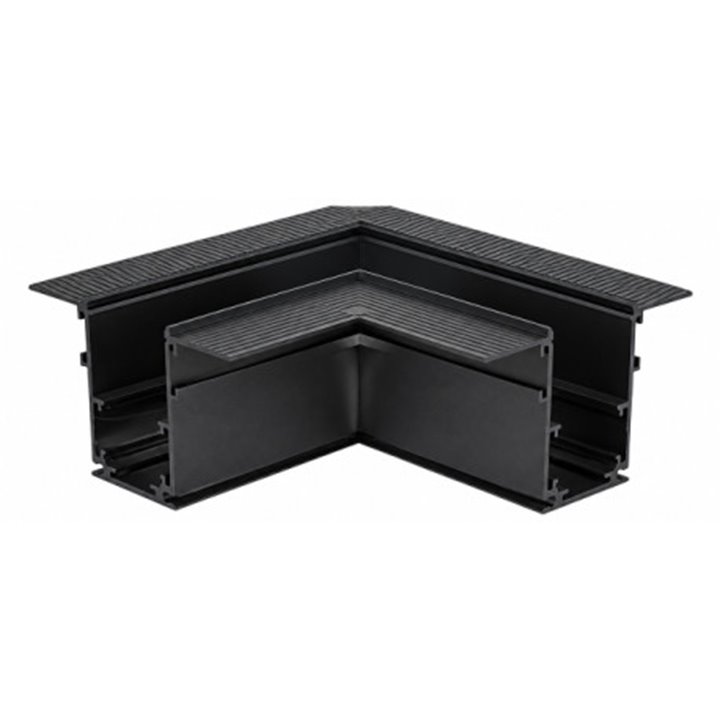

R6 Horizontal L Corner (ceiling to ceiling) for Embedded Rail MG20R6-[FIN] Finish White / Black

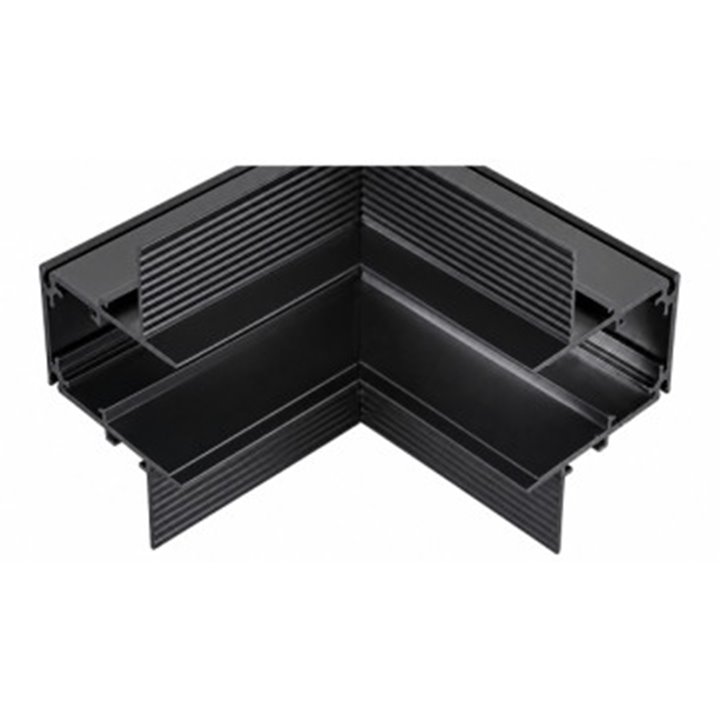

R7 Vertical L Corner (ceiling to wall) for Embedded Rail MG20R7-[FIN] Finish White / Black

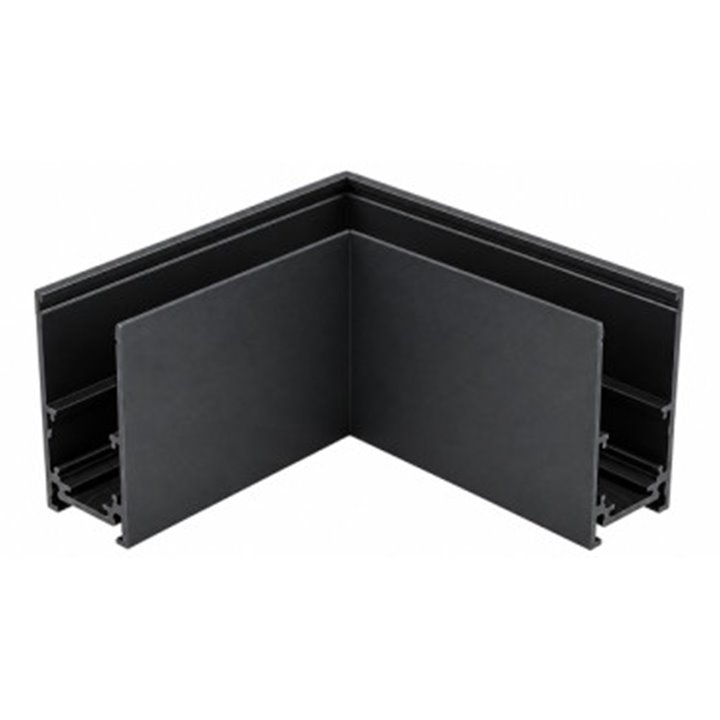

R8 Horizontal L Corner (ceiling to ceiling) for Surface Rail MG20R8-[FIN] Finish White / Black

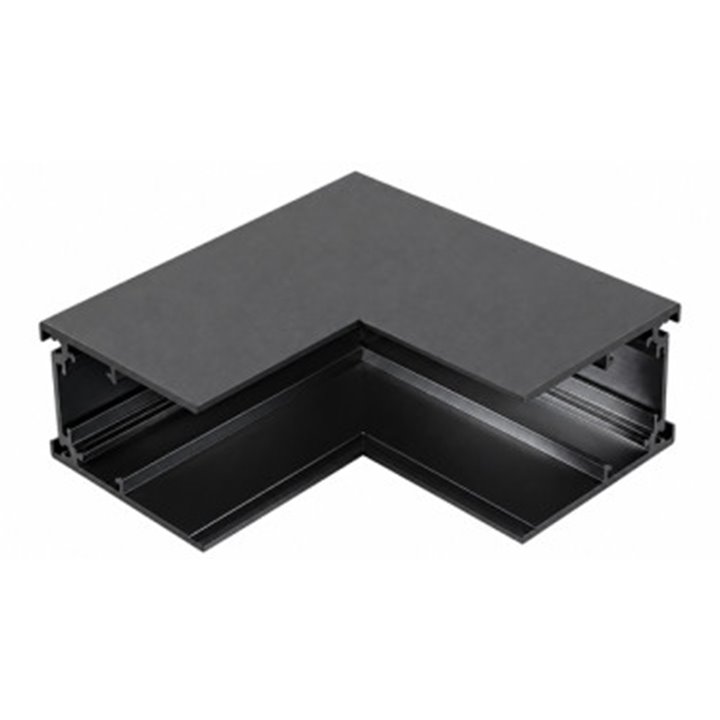

R9 Vertical L Corner (ceiling to wall) for Surface Rail MG20R9-[FIN] Finish White / Black

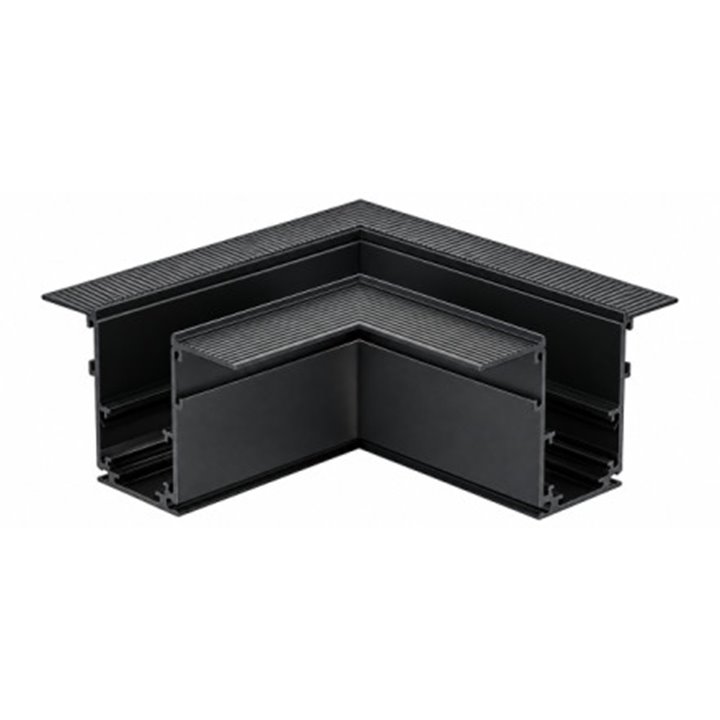

R10 Horizontal L Corner (ceiling to ceiling) for Trimless Rail MG20R10-[FIN] Finish White / Black

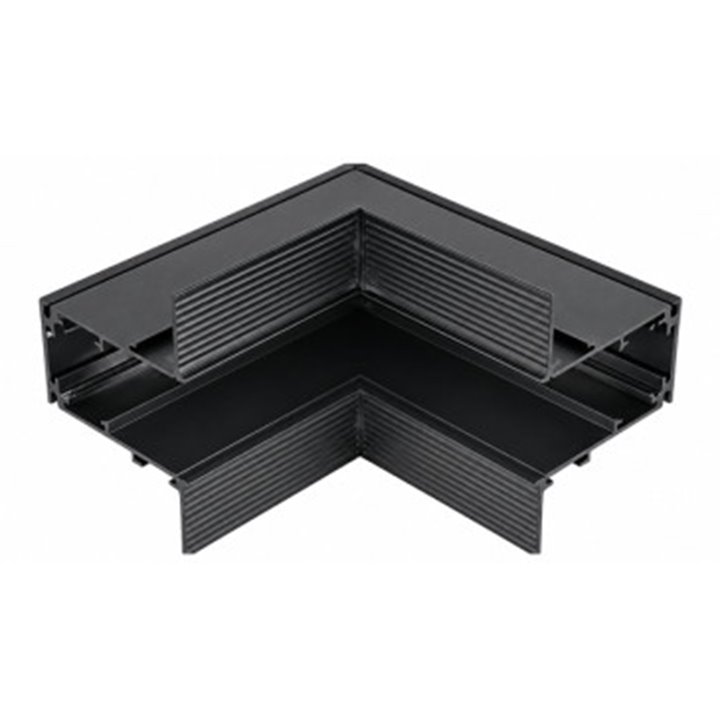

R11 Vertical L Corner (ceiling to wall) for Trimless Rail MG20R11-[FIN] Finish White / Black

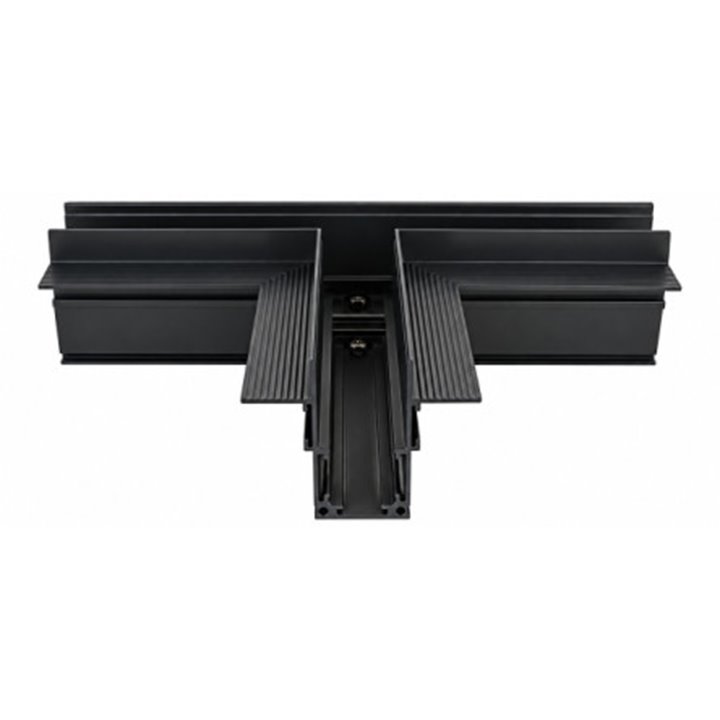

R13 T Connector MG20R13-[FIN] Finish White / Black

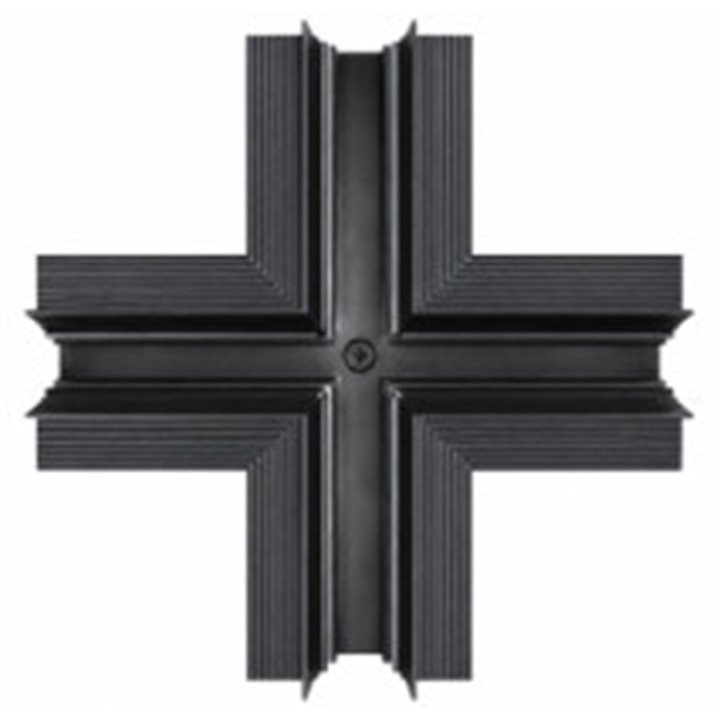

R14 + Connector MG20R14-[FIN] Finish White / Black

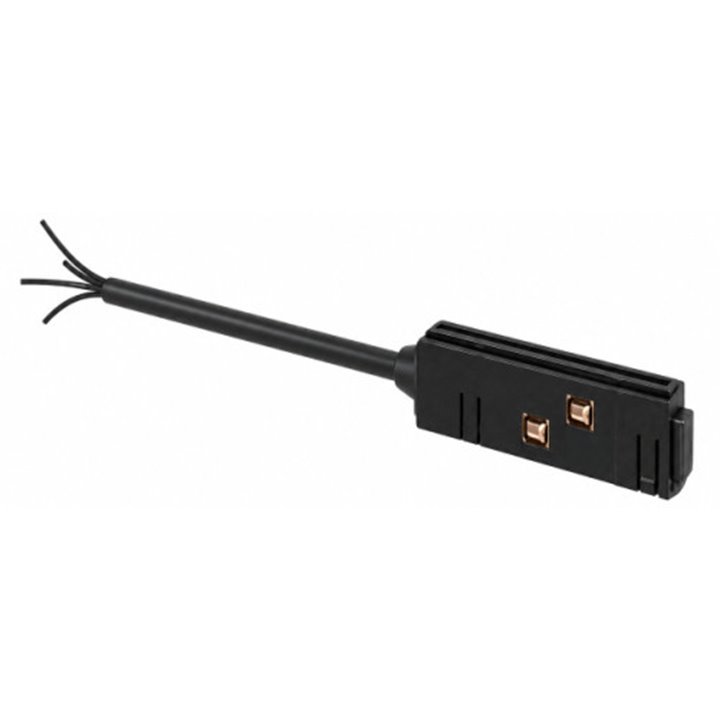

CM02 Power Feed / Input Conductive Module (0-10V / DALI signal, 30cm cable) MG20CM02-[FIN] Finish White / Black

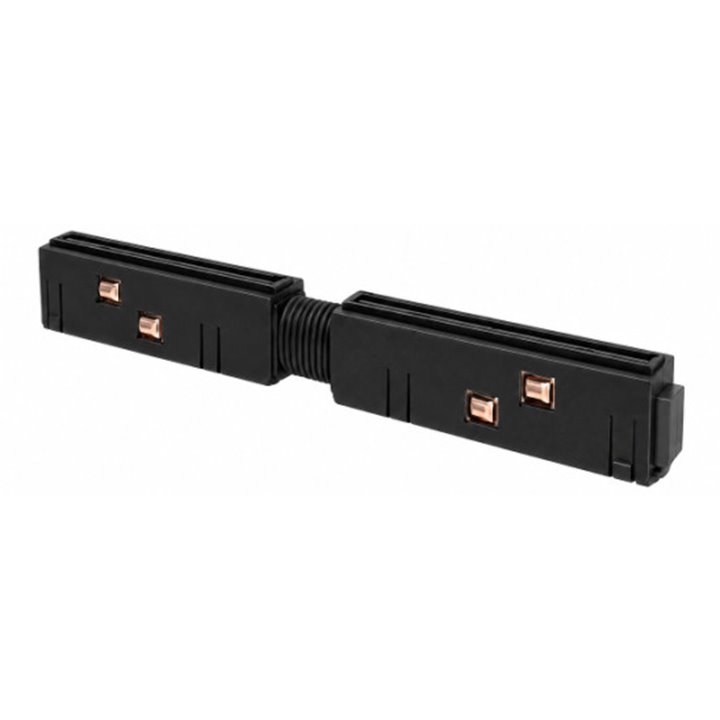

CM04 Straight Through Conductive Connector MG20CM04-[FIN] Finish White / Black

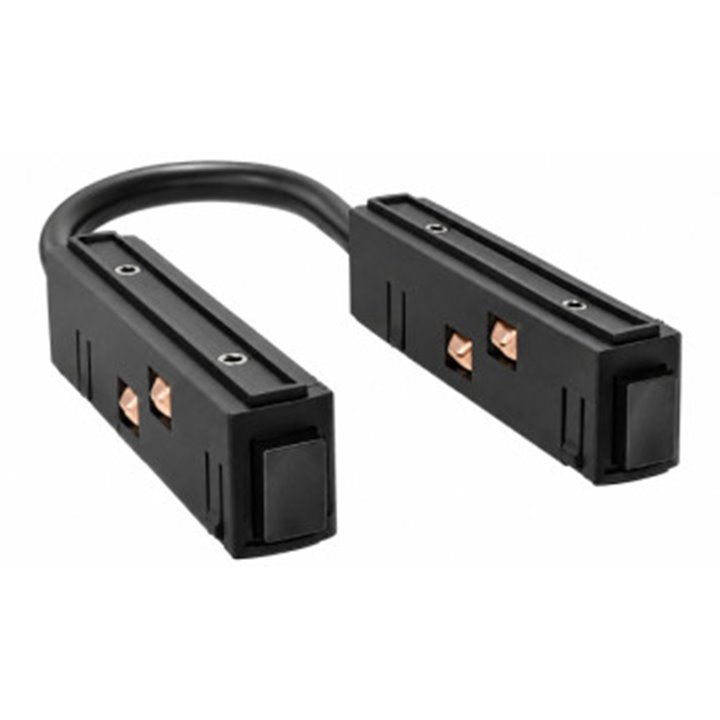

CM05 Corner Conductive Connector MG20CM05-[FIN] Finish White / Black

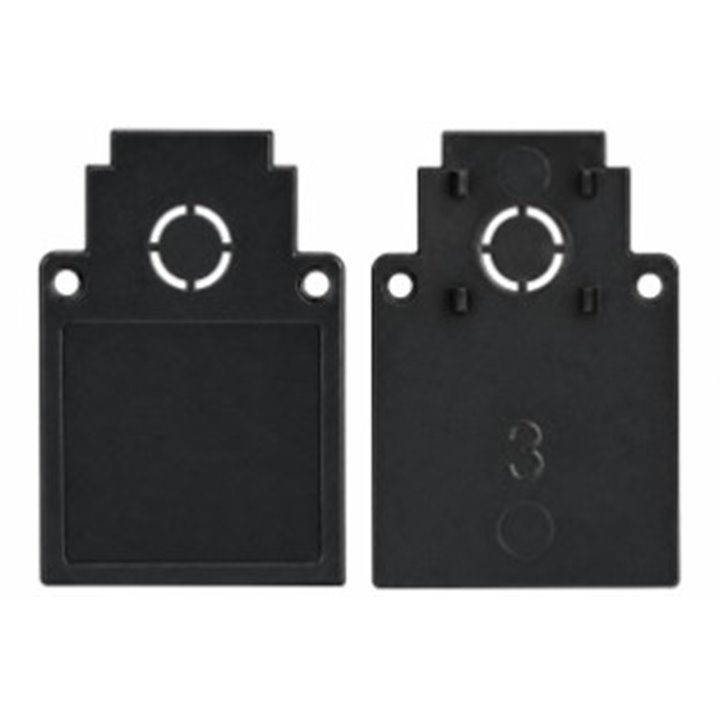

CM07 End Cap MG20CM07-[FIN] Finish White / Black

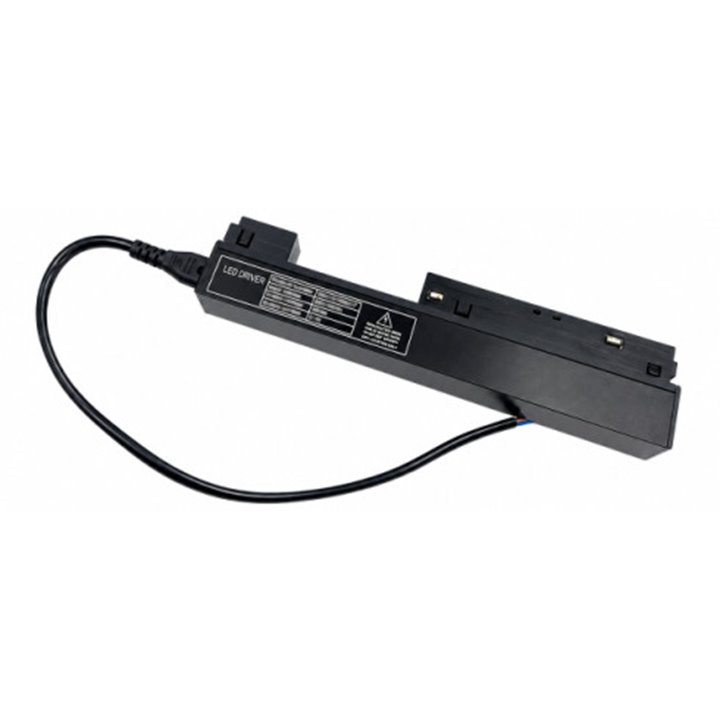

D100 Built-in Driver 100W (in-track), 200-240V AC to DC48V MG20D100

D200 Built-in Driver 200W (in-track), 200-240V AC to DC48V MG20D200

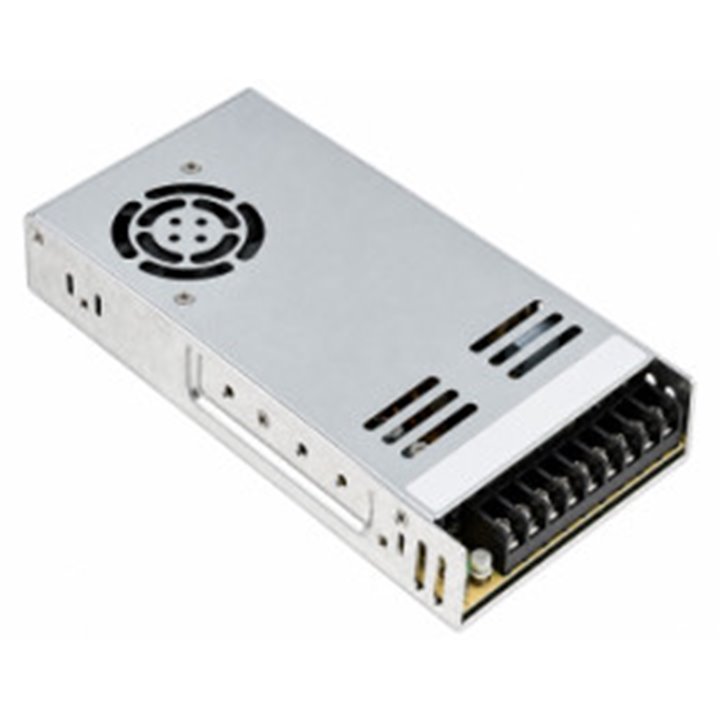

D200E External Driver 200W, Mean Well, 100-240V AC to DC48V MG20D200E

D350E External Driver 350W, Mean Well, 100-240V AC to DC48V MG20D350E

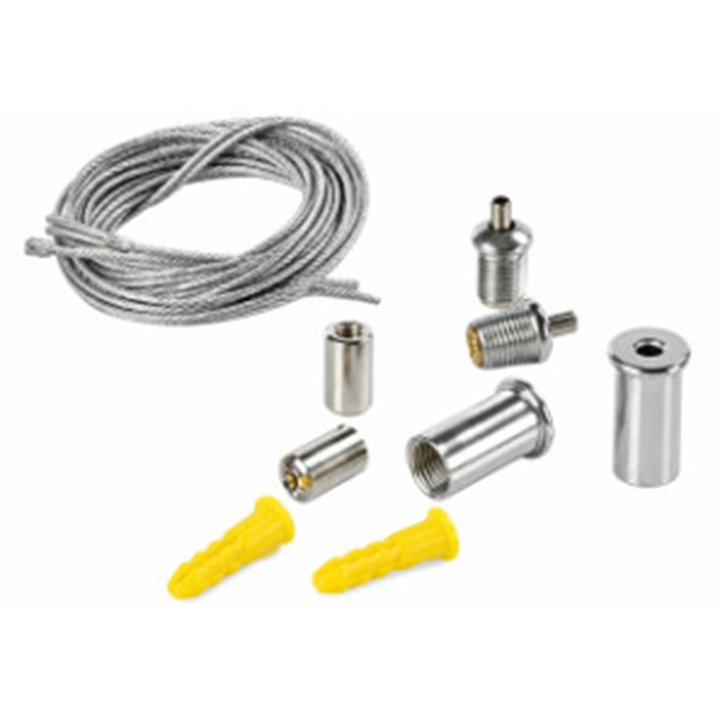

SK Suspension Kit (2m x 2pcs) for Surface / Suspended Rail MG20SK-[FIN] Finish White / Black

Rail example MG20R3-[LEN]-BK M20 surface / suspended rail in Black. Specify the required length: 1m, 2m or 3m. Use the exact accessory code on its model page; fixed driver codes have no finish suffix.
