FC-04 — Outdoor & Façade

Gradus

Guidance through light.

A collection of recessed and surface-mounted step lights.

1.8–12 W10–60°IP54 · IP65 · IP67 · IP68
Configure ↓ 21 models
Gradus series
Configure

Build your Gradus order code.

Pick a model, then set the light. Only the options that model is made with are shown, so every code you build is a real one.

1 · Model 21 models · 8 types
2 · Light
Colour
Beam
Dimming

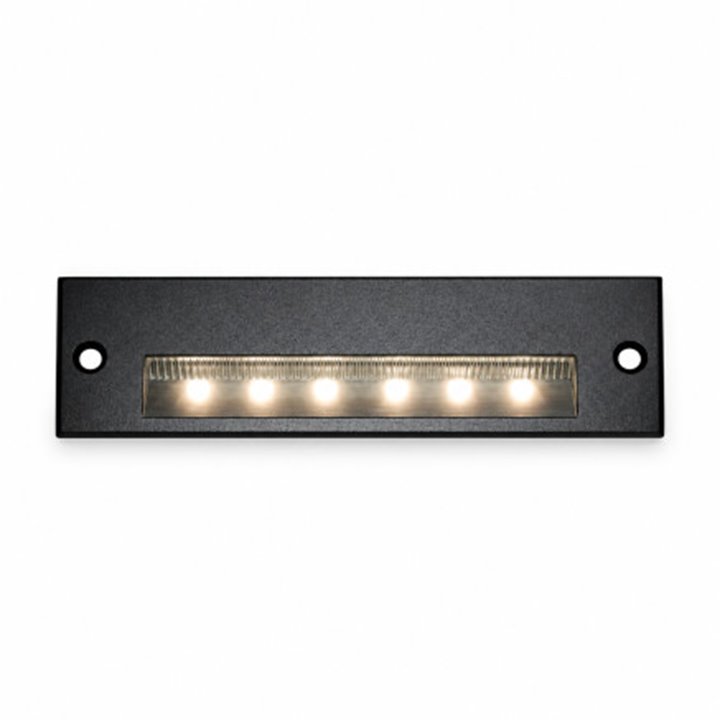

Gradus 1145L
Gradus 1145L
Order code Linear recessed step light
GR1145L-30AS-ND

Finish and material are as listed on the model page; no finish code is added. Dimming availability varies by model. Confirm the input voltage and power-supply arrangement shown for the selected model.

Colour temperature3000K
Beam angleAsymmetric 90°
DimmingNon-dimmable
Wattage1.8 W
Lumen output162 lm
CRI80
Ingress protectionIP54
DimensionsL145 x W45 x H43 mm
Installation openingEmbedded box (included)
Finish / materialBlack / Aluminium Cover / Aluminium Body
InstallationWall Recessed
Input voltage220-240V AC / 24V DC
Power supplyIntegral
Send this spec →
